New Video Capture And Audio

Specifications:
HDMI resolution: up to 4K input
Video input format: 8/10/12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: maximum output resolution 1080P
Audio formats supported: L-PCM
Input cable length: ≤ 15m, AWG26 HDMI standard cable
Maximum working current: 0.7A/5VDC
Operating temperature range: (- 10 to+55 ℃)

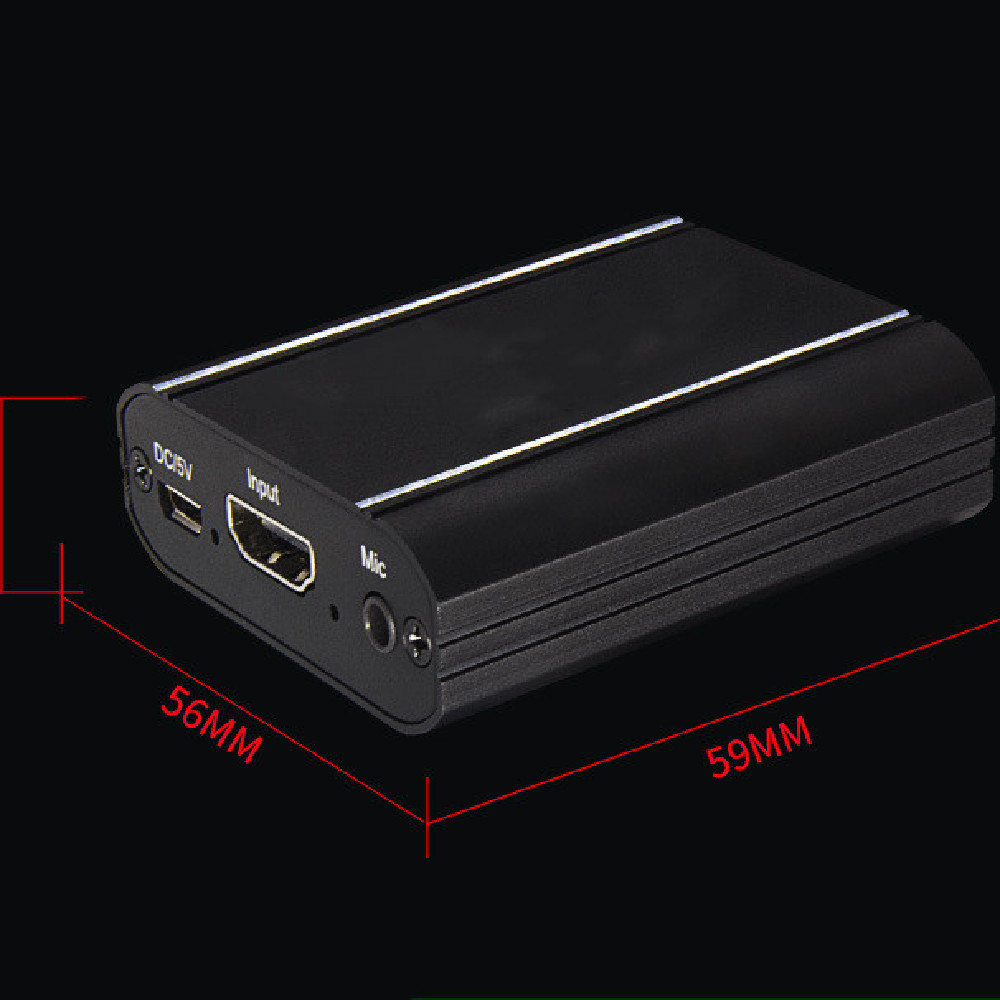

Size: 59x56x19 (mm)
Weight: 56g

Features:
This capture card can capture both HDMI video and HDMI audio at the same time, and can capture audio and video signals
Transfer to computers, smartphones for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

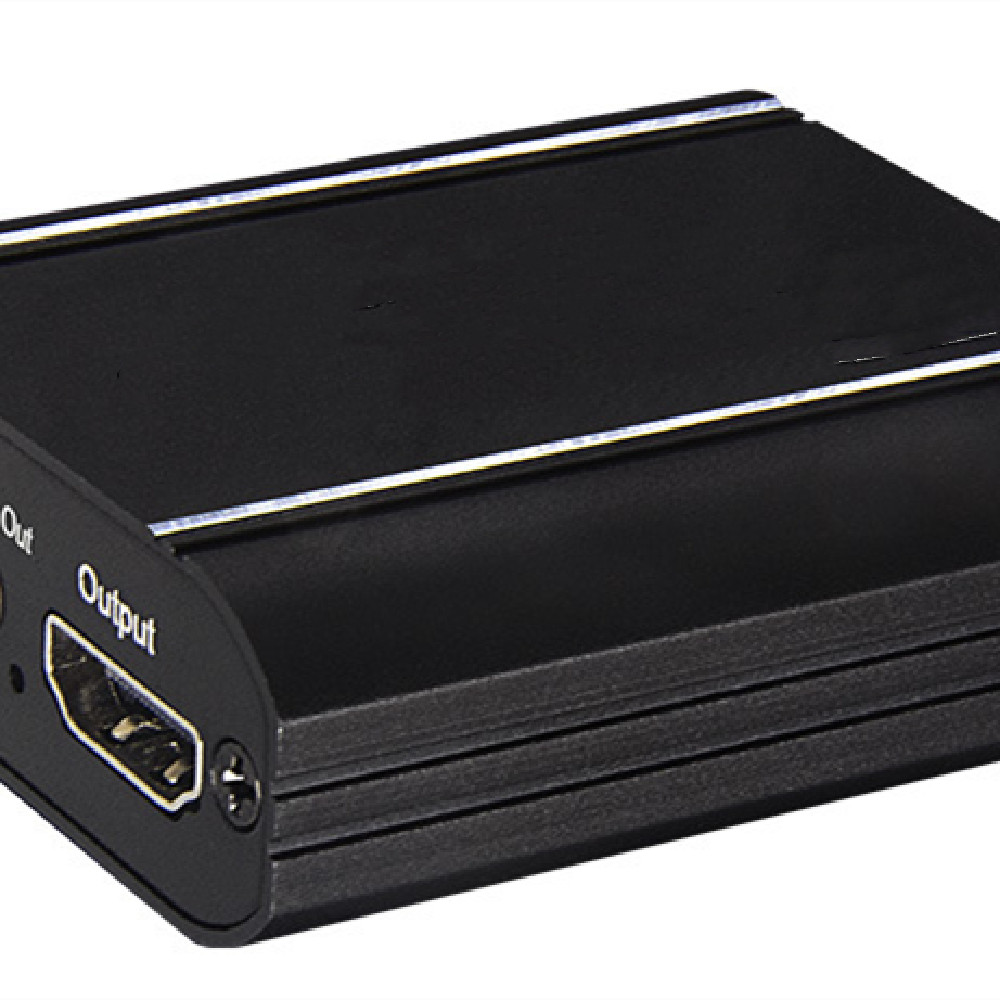

Supports HDMI local ring out;
Support microphone audio input, 3.5 stereo output;
Support overlapping acquisition of microphone audio and HDMI audio;
Supports a maximum input resolution of 4K;
Supports a maximum output resolution of 1080P;
Supports the use of standard AWG26 cables with an input transmission distance of up to 15 meters (resolution of 1080P and below);
Support most acquisition software, such as VLC, OBS, Amcap, etc;
Support for Windows, Android, and MacOS;
Comply with USB video UVC specifications;
Comply with USB audio UAC specifications;
Compact and convenient to carry.

Packing list:
Acquisition card X1PCS
